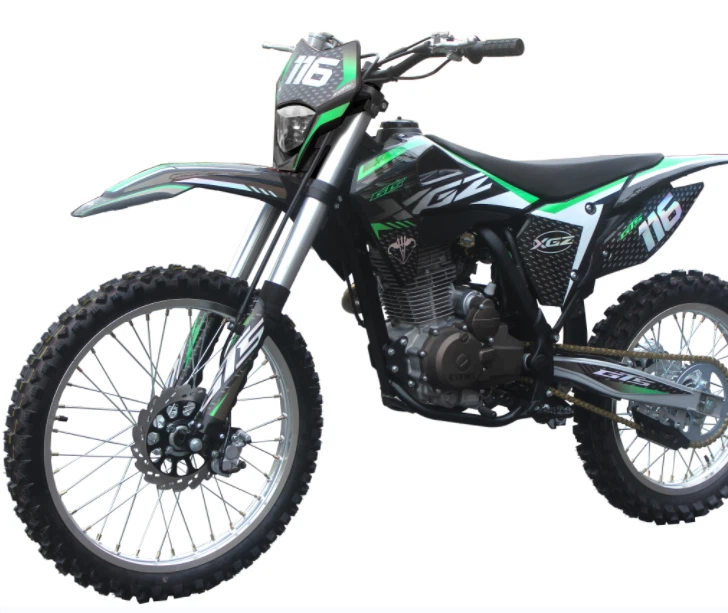

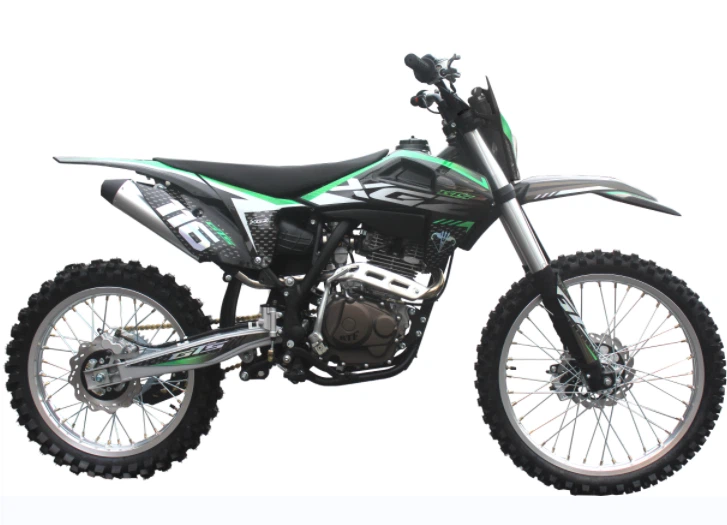

250cc Off Road Racing Dirt Bike
GTS-CB250 has clear and smooth lines.The whole vehicle adopts XGZ CB250 Single Cylinder, Air Cooling, Four Stroke, Overhead CamFour Valve,5 Gearshift Balance shaft,which reduces the weight of the whole vehicle by about 1100 grams, it is newly designed with high quality off road bike, it is hot saled bike overseas.
Send Inquiry
Product Introduction
GTS-CB250 has clear and smooth lines.The whole vehicle adopts XGZ CB250 Single Cylinder, Air Cooling, Four Stroke, Overhead CamFour Valve,5 Gearshift Balance shaft,which reduces the weight of the whole vehicle by about 1100 grams, it is newly designed with high quality off road bike, it is hot saled bike overseas.


| GTS-CB250 | |
| ENGINE | XGZ CB250 Single Cylinder, Air Cooling, Four Stroke, Overhead Cam |
| Displacement | 223mL |
| Bore×Stroke | 65.5×62.2mm |
| Max.Power | 12/7000kw/r/min |
| Max.Torque | 17.5/5500N.m/r/min |
| Compression Ratio | 9.3:1-9.9:1 |
| Lubrication Method | Force-Feed&Splash |
| Clutch Mode | Mannual Wet Multi-Plate |
| Gearshift Mode | Constant Mesh, 2-stage Transmission, 5 Gearshift |
| Ignition mode | CDI |
| Starting mode | Electric /Kick Start |
| FRAME | Widened High Strength Steel Tube Dual Swing Arm Frame |
| MUFFLER | Stainless Front Pipe, Aluminium Alloy Muffler |
| Front shock absorber | Inverted Fixed Damping Front Shock Absorber |
| Rear shock absorption | Mechanical Oil Pressure Adjustable Rear Reducer |
| Front disc brake | Double Piston Pump Hydraulic Front Brake System, Ajustable Handle Bar |
| Rear disc brake | Double Piston Pump Hydraulic Rear Brake System |
| rim of a wheel | High Strength Aluminum Alloy Rim and Hub, Front 1.60 * 21, Rear 2.15 * 18 |
| Tyre size | Front 80 / 100-21; Rear 100/90-18 |
| Battery | 12V6AH Water Battery |
| Length * width * height | 2050mm*805mm*1160mm |
| ground clearance | 310mm |
| Seat height | 900mm |
| Tank capacity | 6L |
| wheel base | 1360mm |
| Curb weight | 110kg |
