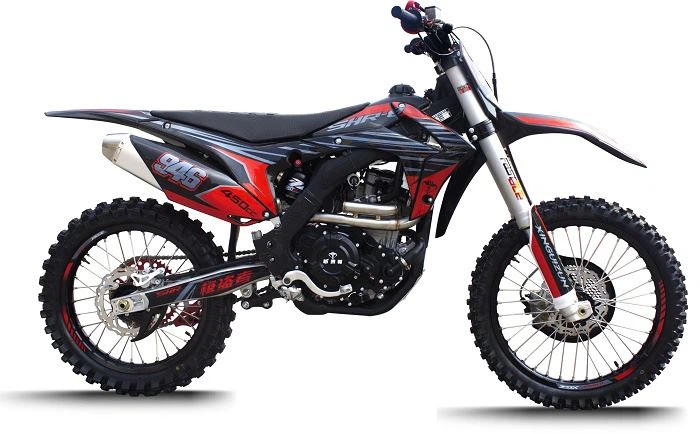

SHR-450 Off Road Sport Bike
SHR-450 has clear and smooth lines.The whole vehicle adopts ZONGSHEN NC450 single cylinder, water cooled, four stroke, four valve, overhead cam, balance shaft type,which reduces the weight of the whole vehicle by about 1100 grams.
Send Inquiry
Product Introduction
Many friends buy off-road vehicles because they want to experience a more exciting driving experience through more complex road conditions, and at the same time minimize the cost of maintenance and spare parts damage. This water cooled motocross bike can meet all your requirements.
This is a very good water-cooled motocross bike, he has ZONGSHEN NC450 single cylinder, water cooled, four stroke, four valve, overhead cam, balance shaft type.
| Standard Configuration | |
| engine ZS172MM | NC450 single cylinder, water cooled, four stroke, four valve, overhead cam, balance shaft type |
| displacement | 449ml |
| Bore×Stroke | 94.5*64mm |
| Max.Power | 30/8000kw/r/min |
| Max.Torque | 37/7000kw/r/min |
| Compression Ratio | 11.2:1 |
| Lubrication Method | Force-Feed&Splash |
| Clutch Mode | Mannual Wet Multi-Plate |
| Gearshift Mode | Constant Mesh,2 stage transmission,6 gearshift |
| Ignition mode | Capacitive Energy Storage Type |
| Start Mode | Electrical& Kick |
| Frame | High Strength Steel Tube Frame |
| Steering Column | CNC Light Weight High Strength Steering Column |
| Muffler | Stainless Aluminum Alloy Single Back Pressure Muffler |
| Front Shocks | Upper and Lower ,Double End Adjust Thickened Front Shock Absorber 54#-60# |
| Rear Shocks | Upper and Lower ,Double End Adjust Thickened Rear Air Shock Absorber |
| Front disc Brake | Double Piston Pump Hydraulic Front Brake System |
| Rear disc Brake | Single Piston Pump Hydraulic Rear Brake System |
| Forks | Blade Strength Aluminum Forks |
| Rim | KKE7 series high-strength aluminum alloy ring CNC drum core stainless steel spoke stainless steel nut |
| Tire | Front 80/100-21 Rear 100/90-18 |
| Battery | Lithium Battery 12V3AH |
| Length*Width*Height | 2180mm*900mm*1280mm |
| Ground Clearance | 330mm |
| Seat Height | 950mm |
| Fuel Tank Volume | 11L |
| Wheel Base | 1490mm |
| Curb Weight | 120kg |
