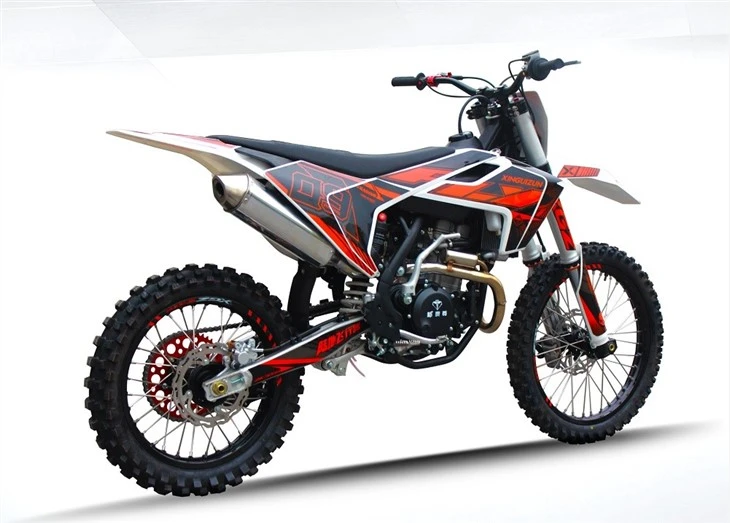

300cc 4 Stroke OFF-road Motorcycle
NC300R is equipped with Zongshen NC300 twin-cam engine, and the engine power has been significantly improved. A large number of CNC components are used in the whole car, and the lightweight design makes the whole car lighter, and the driver and passengers can control it more flexibly. The "ceiling" configuration of the whole car is a rare top model in China, which is really worth having!
Product parameters
|
Standard Configuration |
|
|
engine ZS172MM |
NC300s single cylinder, four stroke, four valve, water cooling, overhead double cam, sixth gear balance shaft |
|
displacement |
283ml |
|
Bore×Stroke |
82.0*53.6 |
|
Max.Power |
23/9000kw/r/min |
|
Max.Torque |
25/7000N.m/r/min |
|
Compression Ratio |
11.6：1 |
|
Lubrication Method |
Force-Feed&Splash |
|
Clutch Mode |
Mannual Wet Multi-Plate |
|
Gearshift Mode |
Constant Mesh,2 stage transmission,6 gearshift |
|
Ignition mode |
Capacitive Energy Storage Type |
|
Start Mode |
Electrical& Kick |
|
Frame |
High Strength Steel Tube Frame |
|
Muffler |
Stainless steel aluminum alloy single row muffler |
|
Front Shocks |
Upper and lower double adjustable front shock absorber 54 φ- sixty φ |
|
Rear Shocks |
The external air bag can be adjusted up and down in two directions, and the rear shock absorber is thickened |
|
Front Disk Brake |
Riqing front disc brake system |
|
Rear Disk Brake |
Single piston pump hydraulic rear brake system, sintered shoe (high configuration) |
|
Rim |
Aluminum alloy, front 1.60 * 21, rear 2.15 * 18 |
|
Tire |
Zhengxin deep tooth antiskid tire, front 80-100-21, rear 100-90-18 |
|
Battery |
Maintenance free lithium battery 12v3ah |
|
Length*Width*Height |
2140mm*820mm*1240mm |
|
Ground Clearance |
280mm |
|
Seat Height |
940mm |
|
Fuel Tank Volume |
9L |
|
Wheel Base |
1460mm |
|
Curb Weight |
120kg |
Product details
